The HA2002 is a privacy mortise deadbolt with a spring-activated pull for use on pocket or sliding doors. The deadbolt is thrown by a thumbturn or a keyed mortise cylinder. Custom narrow and extended backsets are also available.

Available in all finishes.

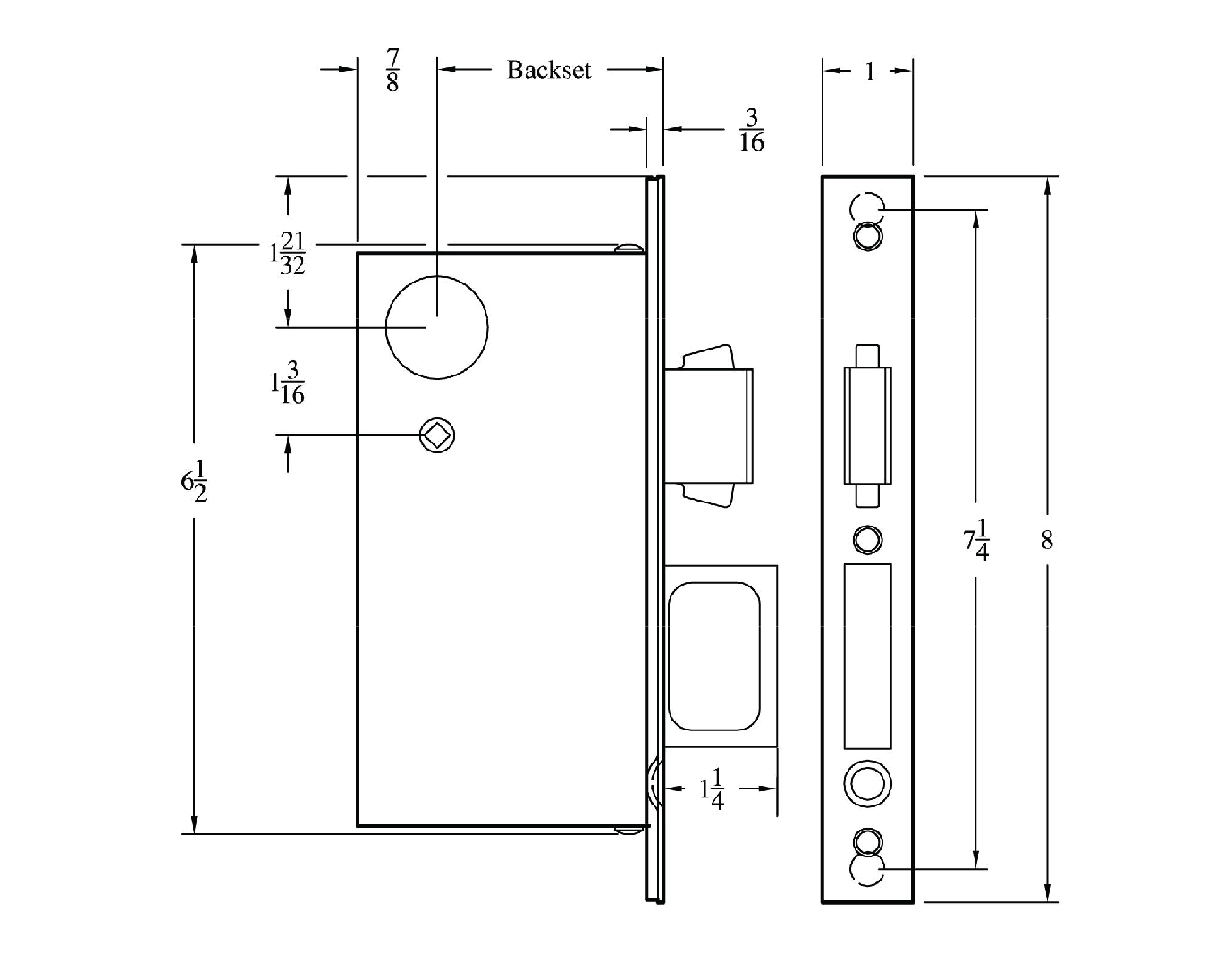

H Theophile Diagram HA2002.jpg

BACKSET TOTAL DEPTH BODY THICKNESS
2" 2-7/8" 3/4"
2-1/2" 3-3/8" 3/4"
2-3/4" 3-5/8" 3/4"
3-3/4" 4-5/8" 3/4"
5" 5-7/8" 3/4"
6" 6-7/8" 3/4"
