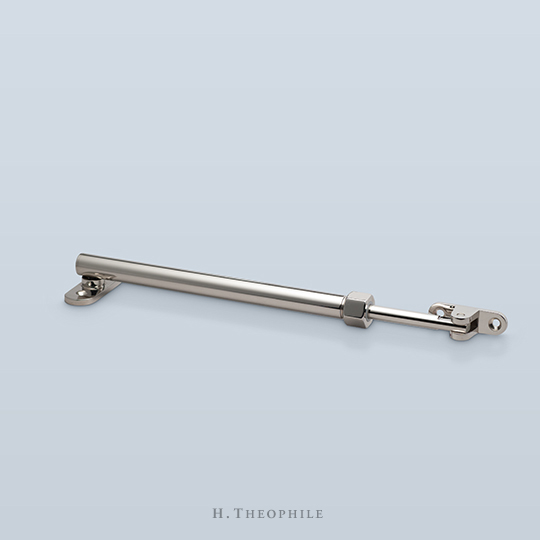

The HT7046 is a telescoping casement stay for hinged casement windows. Shown here with a locking nut to adjust degree of friction or opening.

Sill plate dimension: 2-3/8" x 15/16"
Sash plate dimension: 2-1/16" x 5/8"
Height (H): 1-1/4"
Projection (P): 1-1/4"

Available in all finishes.

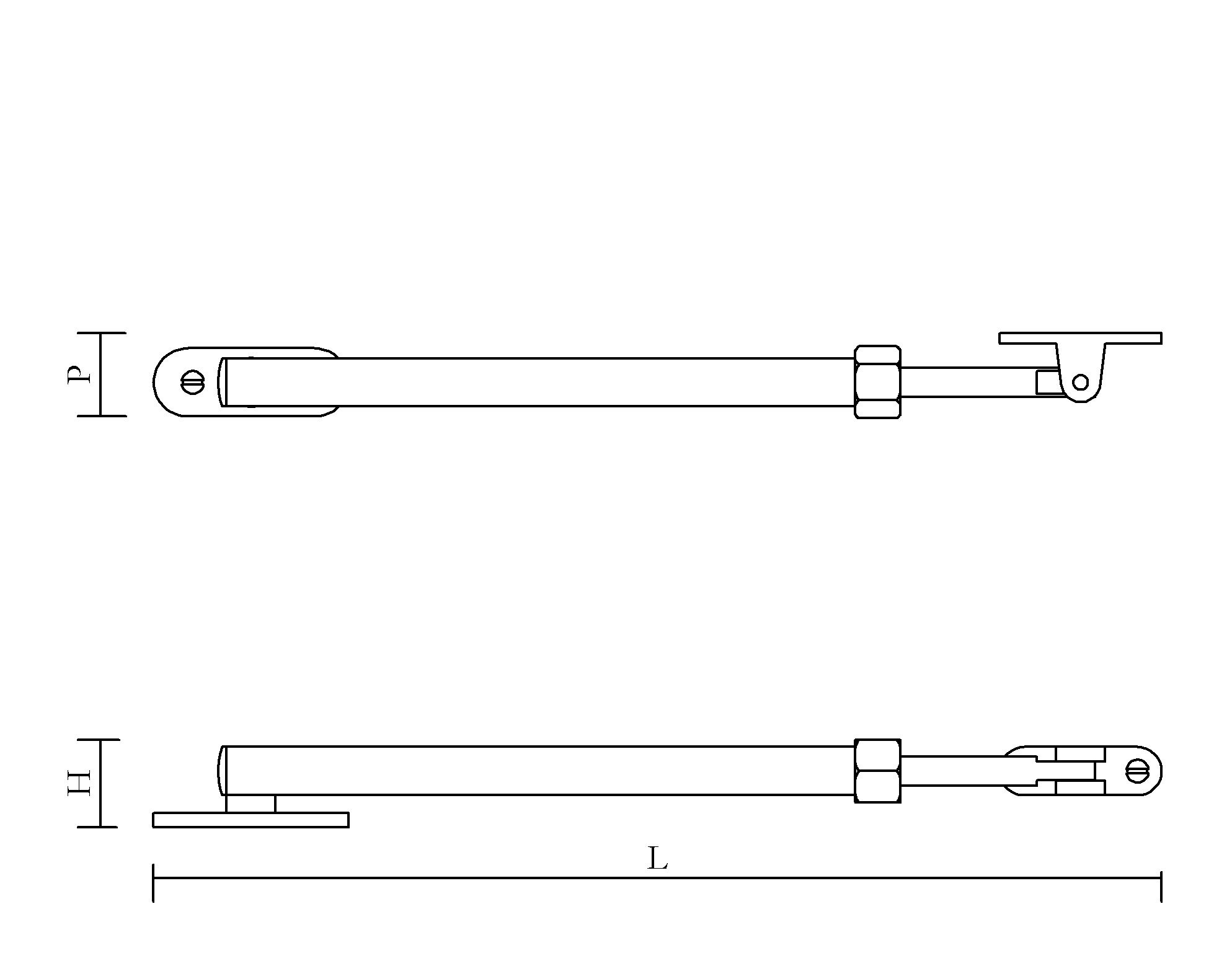

H Theophile Diagram HT7046.jpg

LENGTH (L)
10-1/2" to 16"
