HT9201

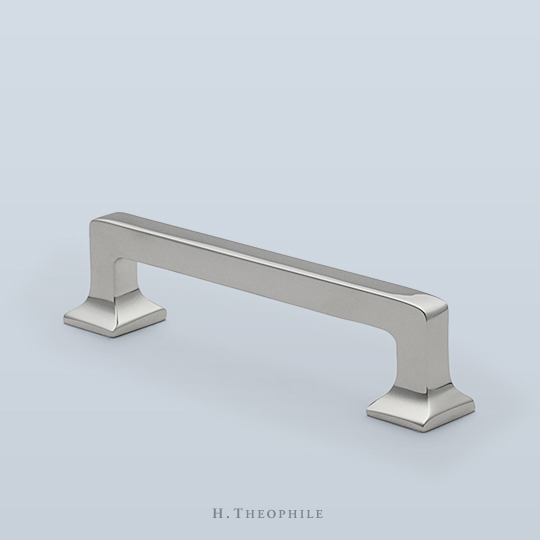

Back to CatalogThe HT9201 wire pull is a classic form used for cabinetry and can be mounted horizontally or vertically. These pulls have flanged square bases. Also available as appliance pulls.
Available in all finishes.

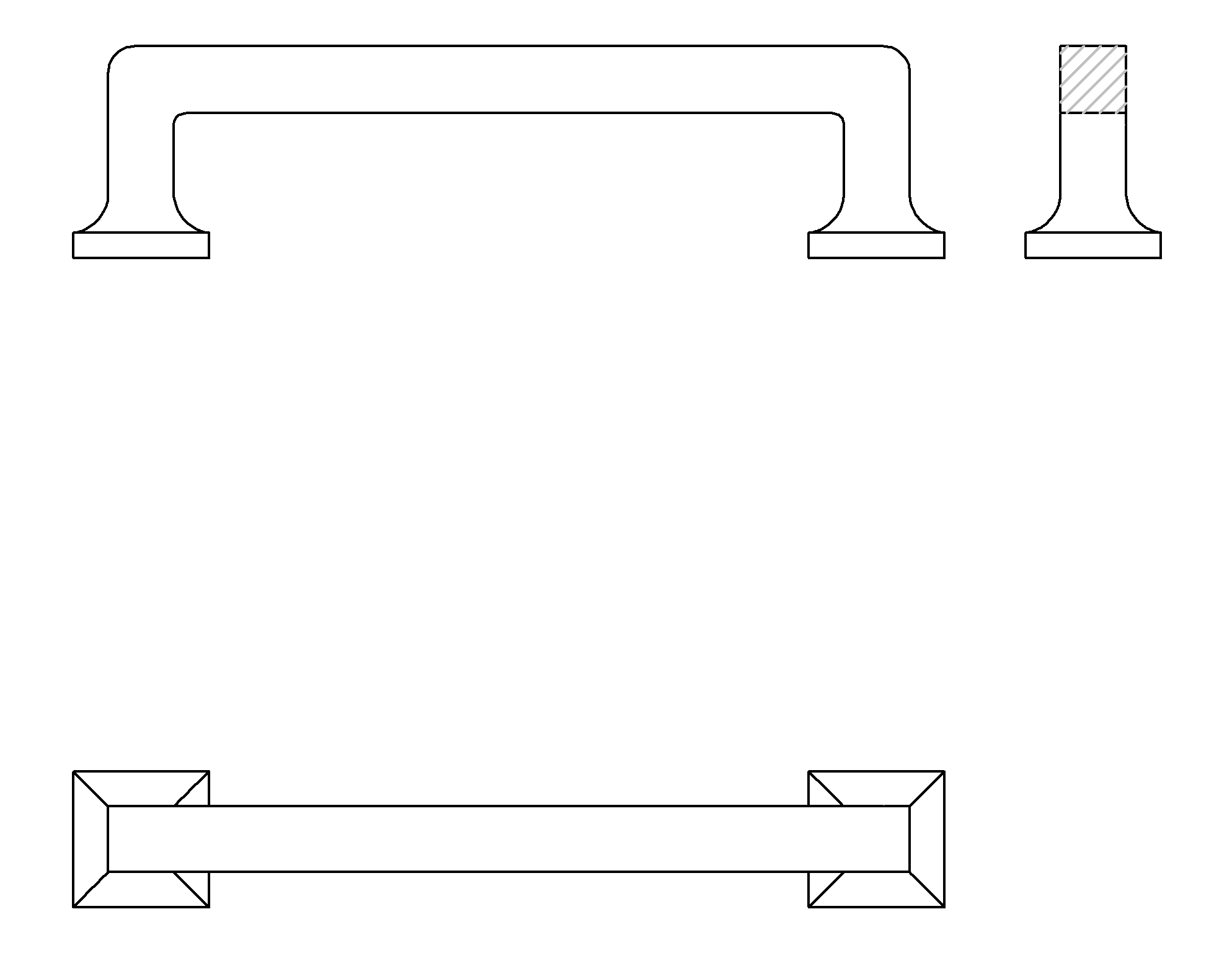

| LENGTH | C-TO-C | WIDTH | PROJECTION |
|---|---|---|---|
| 3-5/8" | 3" | 5/8" | 1-1/8" |
| 4-3/4" | 4" | 3/4" | 1-1/8" |
| 7" | 6" | 1" | 1-1/2" |
| 9-1/4" | 8" | 1-1/4" | 1-5/8" |
| 11-1/4" | 10" | 1-1/4" | 1-3/4" |
| 13-3/8" | 12" | 1-3/8" | 1-1/2" |
| 19-1/2" | 18" | 1-1/2" | 1-3/4" |
| 21-1/2" | 20" | 1-1/2" | 1-3/4" |
| 23-1/2" | 22" | 1-1/2" | 1-3/4" |
| 25-1/2" | 24" | 1-1/2" | 1-3/4" |
