HT0411-HT0910

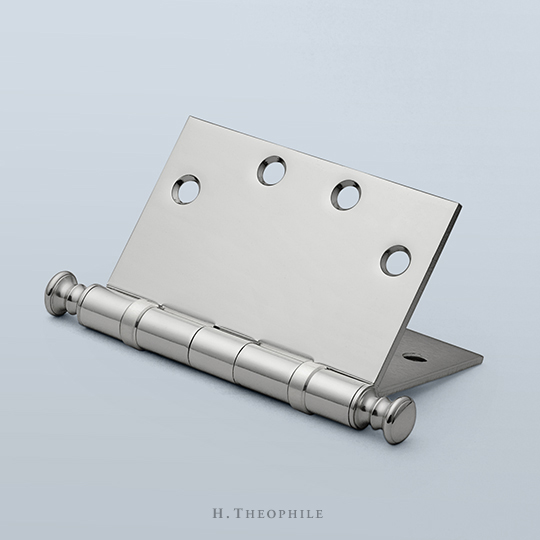

The HT0411 is a premium wide-throw, two ball-bearing butt hinge. Shown here with HT0910 barrel finials and two HT2519 flat, raised bearings which are widely-spaced (by special request only). Other sizes, finials, and bearing designs are available.

Available in all finishes.

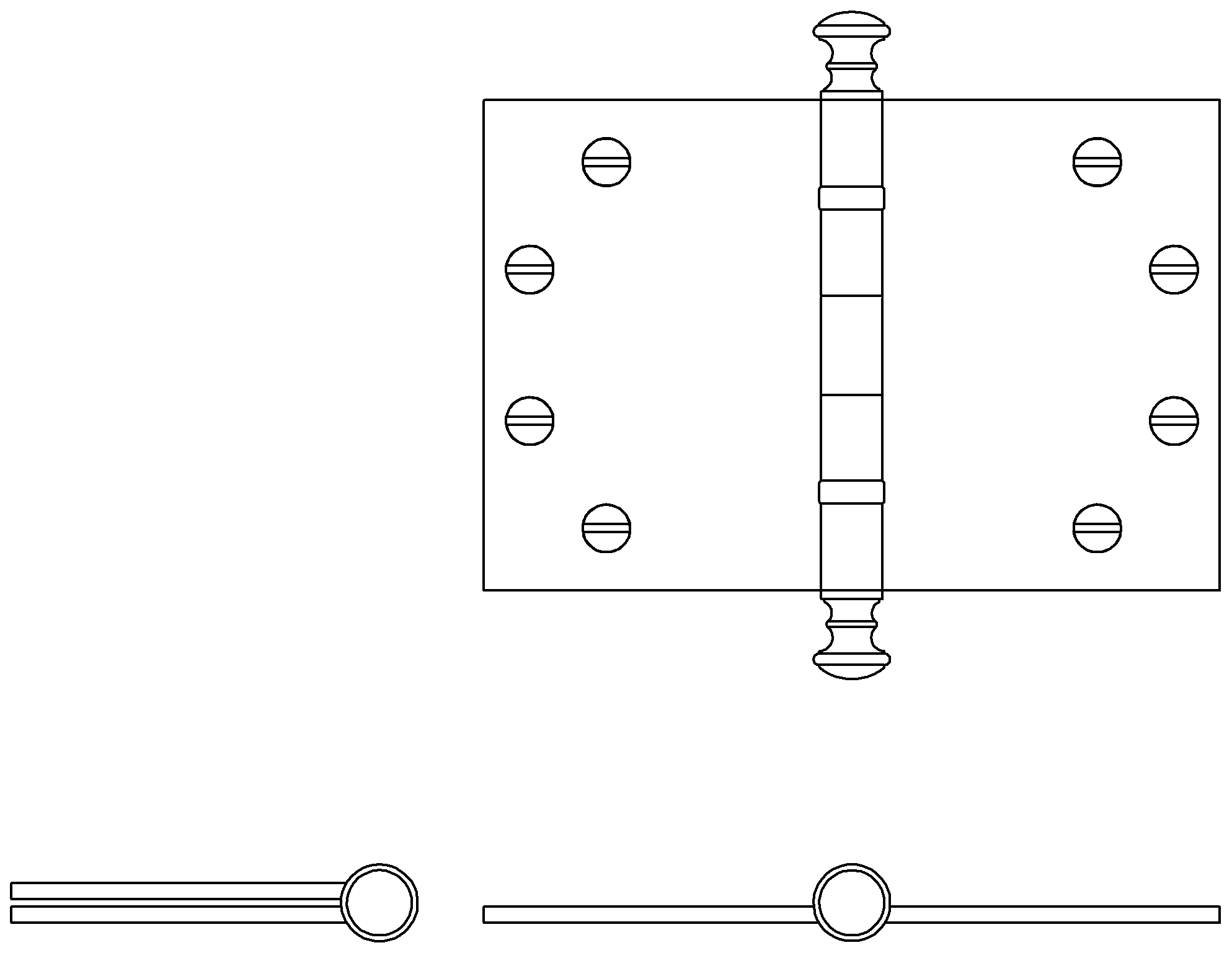

H Theophile Diagram HT0411-HT0910.jpg

LEAF HT. WIDTH KNUCKLE LEAF
4" 5" 1/2" .13"
4" 6" 1/2" .13"
4" 7" 1/2" .13"
4" 8" 1/2" .13"
4-1/2" 5" 9/16" .135"
4-1/2" 6" 9/16" .135"
4-1/2" 7" 9/16" .135"
4-1/2" 8" 9/16" .135"
