HT0511-HT2514

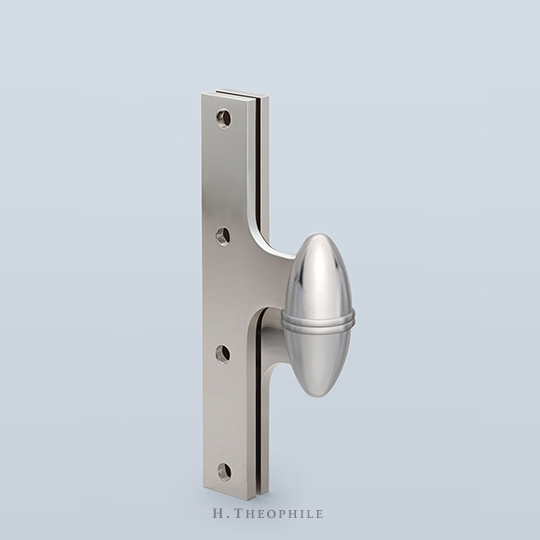

Back to CatalogThe HT0511 is a premium olive-knuckle hinge with a fixed stainless steel pin and concealed bearing assembly embedded within the hinge knuckle. Typically suited for door thicknesses of 1-3/4" and below. Shown here with double-round washer HT2514. Other washer designs are also available.
Available in all finishes.

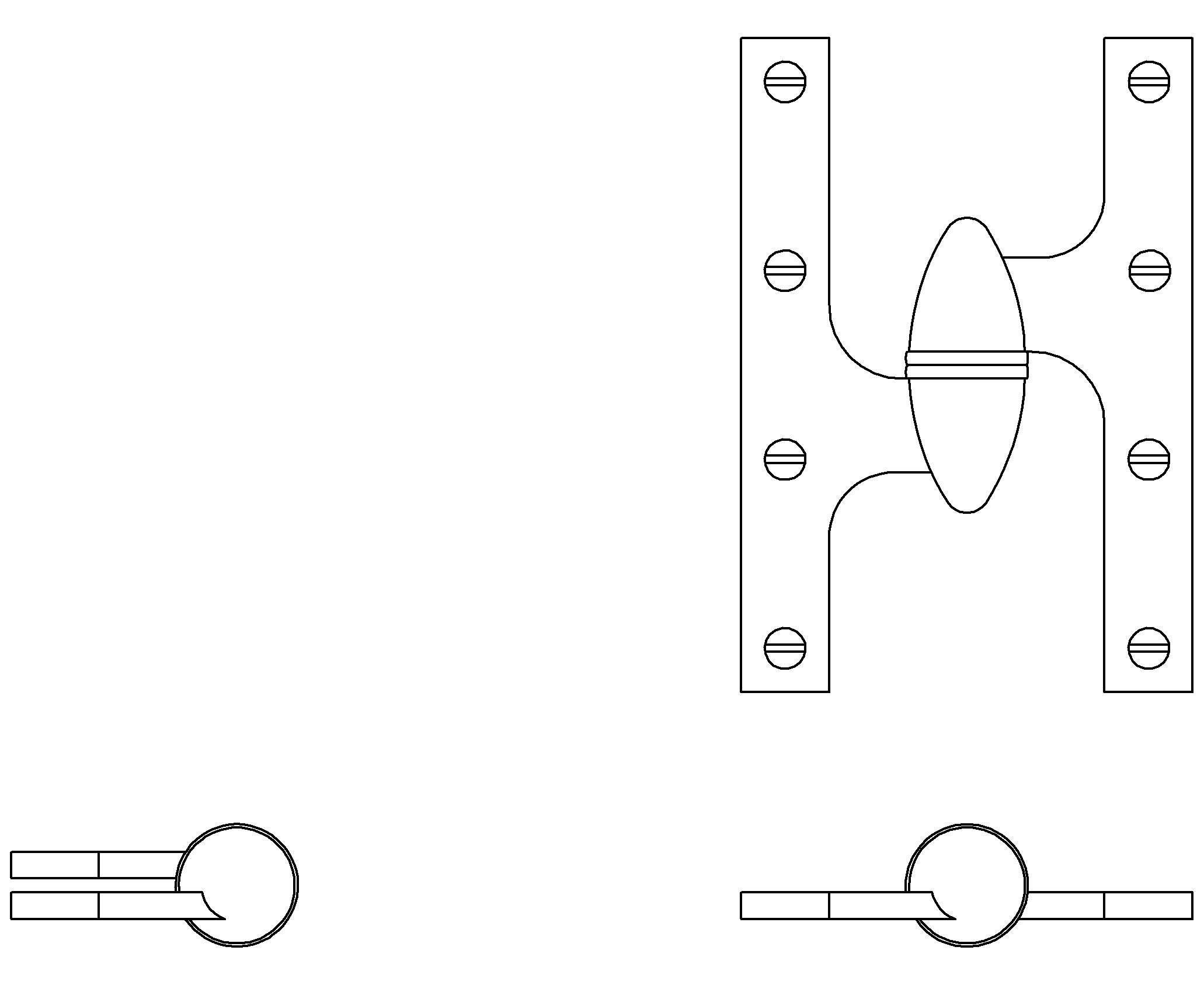

| LEAF HT. | WIDTH | KNUCKLE | LEAF |
|---|---|---|---|
| 6" | 3-7/8" | .945" | .203" |
