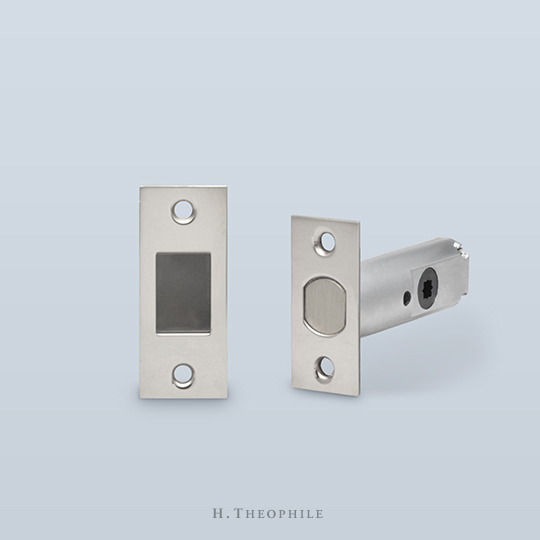

The HT9285 tubular bolt offers the function of a standard deadbolt but with simpler door preparation than its mortise lockset counterpart.

The armor front and strike plate are available in standard and custom finishes.

Other custom backsets may be available upon request.

Available in all finishes.

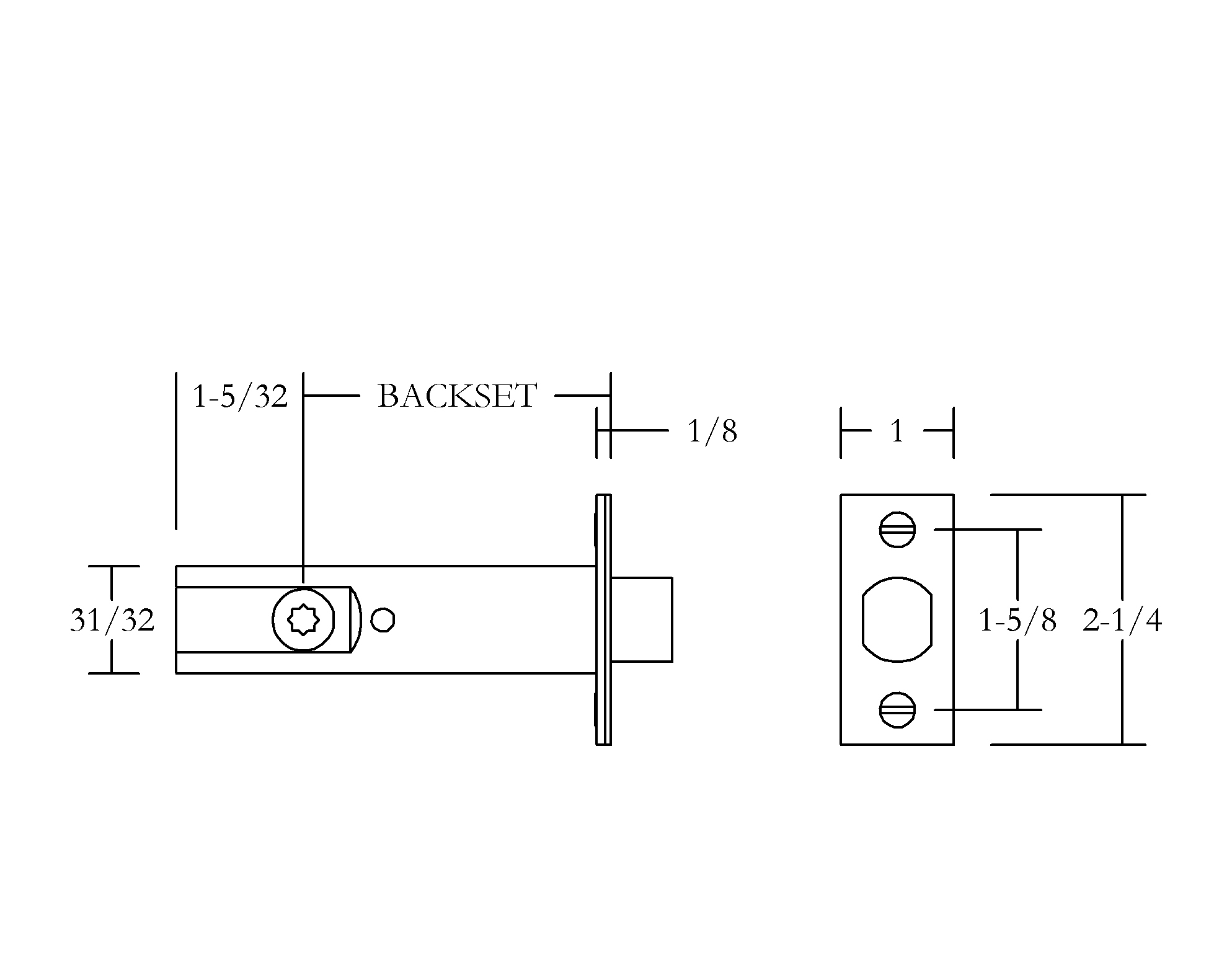

H Theophile Diagram HT9285.jpg

BACKSET TOTAL DEPTH BODY THICKNESS
2" 3-1/8" 1"
2-3/8" 3-1/2" 1"
2-3/4" 3-7/8" 1"
