HT0512-HT2513

The HT0512 is a premium enlarged olive-knuckle hinge with a fixed stainless steel pin and concealed bearing assembly embedded within the hinge knuckle. The leaf's staggered screw pattern is recommended for heavier doors. Typically suited for 2-1/4" thick doors. Shown here with round washer HT2513. Other washer designs are also available.

Available in all finishes.

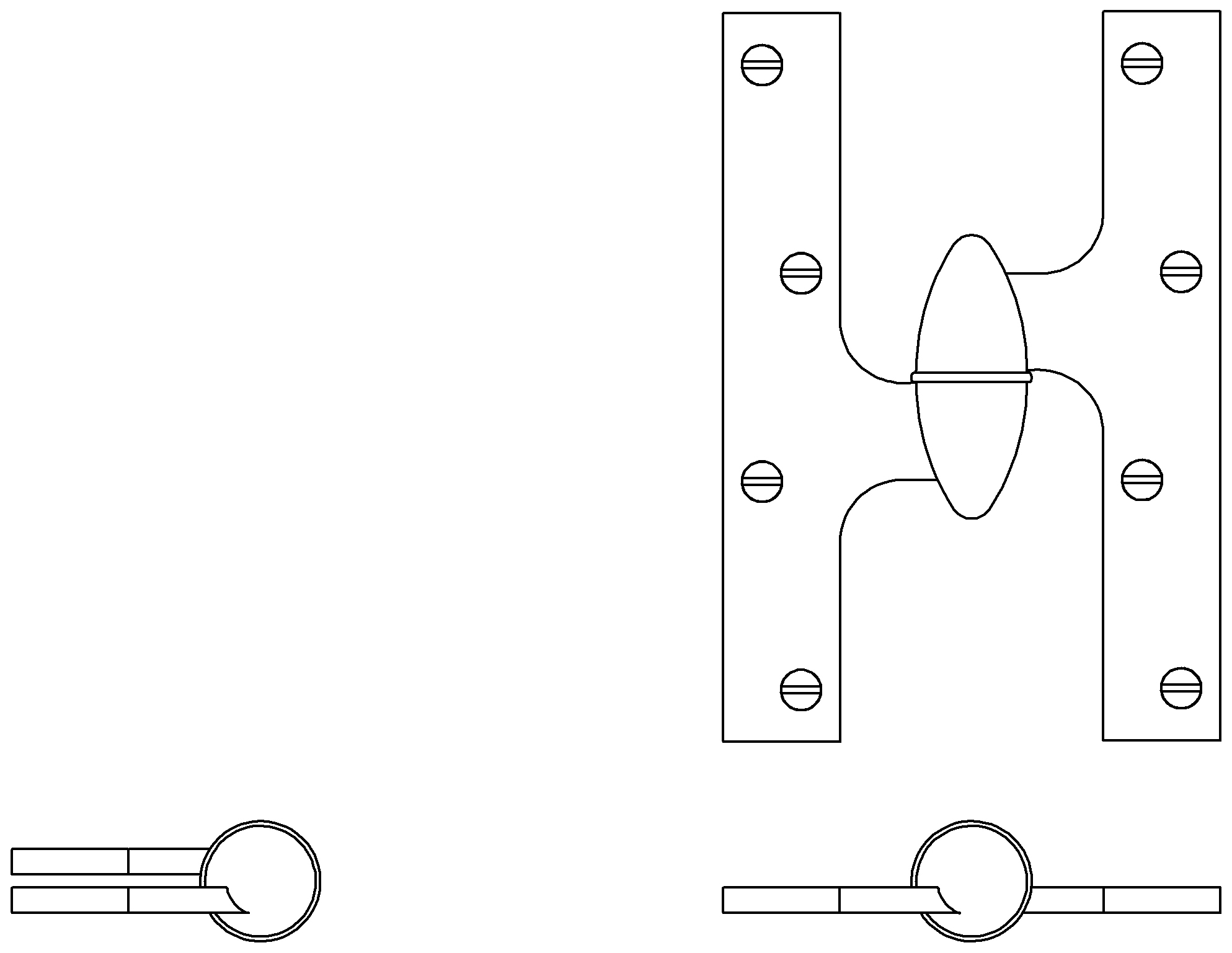

H Theophile Diagram HT0512-HT2513.jpg

LEAF HT. WIDTH KNUCKLE LEAF
7" 4-3/4" 1-1/16" .245"
